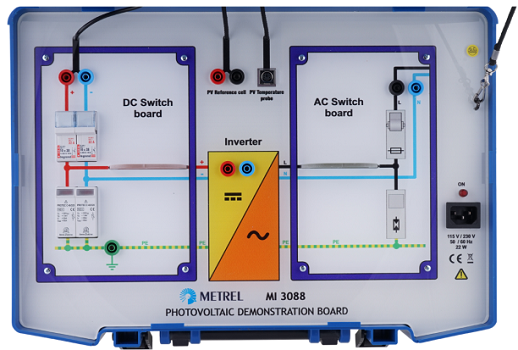

MI 3088 Training Board simulates typical photovoltaic (PV) system with one PV module and DC/AC inverter.
It represents a typical installation in a convenient carry case that consists of PV string, DC switch box, DC/AC inverter and one phase connection to the power grid. It is ideal for use by training organisations for the demonstration of the measuring methods and procedures on DC and partially on AC side of a PV system.
Product Features
• With this demo board all electrical tests according to EN 625446 can be demonstrated: continuity, isolation, open circuit voltage Uoc, short circuit current Isc and polarity.
• It simulates an I/V characteristic of a PV module/string.
• Simulated output of the irradiance and temperature sensor.
• Simulation of a DC/AC inverter with one DC input and single phase output.
