PV-1525-IV

PV-1525-IV

1500V 25A PV SAFETY TESTER WITH I-V

$8,123.00

Call for Price

The PV:1525 Series redefines photovoltaic (PV) system testing, bringing together advanced functionality in a compact, handheld design.

Built for PV installers and O&M engineers, it delivers essential safety and commissioning tests for PV systems up to 1500V DC and up to 25A, combining portability, ease of use, and streamlined data management in the field.

The PV-1525-IV builds on core system testing, adding advanced IV curve analysis to validate system performance and identify faults that standard testing may miss.

Designed for deeper insight, it enables installers and engineers to compare expected and actual output, supporting more accurate diagnostics, faster fault finding, and greater confidence in system quality.

With on-screen curve visualisation, users can quickly assess system behaviour and verify results with confidence. This helps highlight performance issues early and supports more informed decisions on site.

Product Features

The PV-1525-V delivers comprehensive PV system testing, including Integrated IV Curve Tracing Functionality, Ground Continuity, Insulation Resistance, Open Circuit Voltage, and Short Circuit Current measurements.

Featuring an innovative new user interface, it maintains the ease of use from previous models while introducing enhanced features designed for modern test applications. Users can tag test results with installation-specific details, simplifying data management and traceability.

With built-in Bluetooth connectivity, results can be seamlessly transferred to a mobile app for review and synchronisation with software, ensuring your device stays updated with the latest features.

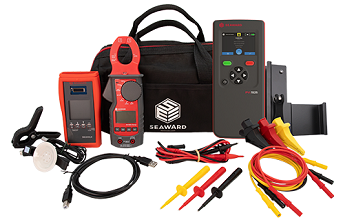

Kit Contains:

  • Seaward Solar PV-1525-IV instrument.
  • PV:1500 Clamp Meter.
  • SS:200LR irradiance meter.
  • Inclinometer.
  • Mounting bracket.
  • Rechargeable Lithium Ion Battery with Charger.
  • Temperature Probe.
  • 4x set of millimeter to MC4 connector leads
  • x2 1500 volt test leads.
  • UKAS Calibration Certificate

Specs

  • PV string open circuit voltage measurement up to 1500 VDC
  • PV string short-circuit current up to 25 ADC
  • Insulation resistance voltage up to 1500 VDC
  • 200 mA continuity measurement
  • Graphical IV curve displayed on screen
  • Calculation of maximum power point voltage, maximum power, point current, and fill factor

Downloads

Download: Seaward PV-1525-IV Specifications
