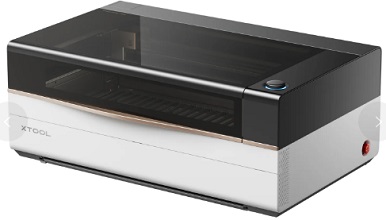

XTOOL P3
80W CO2 LASER CUTTER WITH AUTOMATION
$10,844.00
Ask a QuestionregardingXTOOL P3
xTool P3 80W Flagship CO2 Laser Cutter with Intelligent Automation. It cuts Wood, Acrylic, Fabric, Leather, Metal, Glass, Bamboo and More. It reaches a maximum processing speed of 1200mm/s. The 915x458mm work area and conveyor feeder handle large-scale projects.
This extreme capability is secured by next-level safety. Including active fire detection and suppression within a Class 1 enclosure. Run jobs with confidence as the system protects your tool, project, and workspace.
Product Features
- 14-Camera Vision: For pinpoint material positioning and complete safety monitoring.
- Exclusive ACS™ Smart Workflow: Auto-Positioning, Autofocus, Auto LiDAR Ranging, and an Auto-Lifting Base.
- Smart Accessories: Enables 3D previews (RA3) & full-scale previews (Conveyor).
- 91 × 46 cm Bed Size: Our largest workspace yet—2.2x larger than the P2S.
- 80W Power & 1200mm/s Speed: Double the processing efficiency of the P2S
Specs
Laser Type 80W CO2 Laser + 5W IR Laser (Optional)
Supported Materials Wood, Acrylic, Fabric, Leather, Metal, Glass, Bamboo and More
Working Area 36″ × 18″ (915 mm × 458 mm);
Max. Working Speed 47.2 ips (1200 mm/s), X-axis Acceleration 19 600 mm/s²
Built-in Camera 16 MP SkyView Panoramic Camera + 5 MP Close-range Camera + Side Camera × 2
Positioning Method Dual-Camera Positioning (precision up to 0.2mm)
Accuracy Positioning Precision: 0.2 mm, Camera. Ranging Precision: 0.2 mm, Camera
Focus Mode Autofocus
Ranging System LiDAR Ranging System
