MI-3136 KIT
INSTALTEST COMBO XC – ADVANCED KIT
$2,599.00
Ask a QuestionregardingMI-3136 KIT

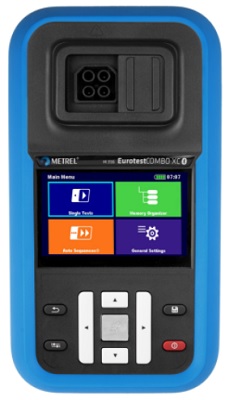

The Metrel MI-3136 COMBO XC is a next generation touch screen installation tester. Replaces 5 instruments with 12 tests in one instrument. Installation testing to AS/NZS3000 and AS/NZS3017. "Sockets in seconds" test with single push button and without trailing lead. Preset and user defined Pass/Fail limits. Auto-sequences for high volume RCD testing.
The InstalTest COMBO XC is a multifunction installation tester with modern touch-screen user interface, replacing a multimeter, insulation tester, RCD tester, loop impedance tester and phase sequence tester in a single portable instrument.
It provides 12 tests, more than any other comparable tester, provides Pass/Fail indication for installation verification and compliance testing, and tests sockets in seconds without a trailing lead.
The optional A-1532XA adaptor turns the MI-3136 into a electric vehicle supply (EVSE) tester for use in the verification of the electrical safety and functional testing of Mode 3 electric vehicle charging stations with a type 2 connector. Test EVSE charging stations with a single push button and generate professional reports.
MI-3136 Advanced Kit
The Advanced Kit is a custom configuration for electrical contractors that carry out installation verification work. The Advanced Kit includes all of the Standard Kit components, as well as the additional items listed below.
The MI-3136 Standard Kit includes:
• Instrument MI 3136 InstalTest COMBO XC
• 1x A 1298 Test probe, Brown
• 1x A 1015 Test probe, Blue
• 1x A 1062 Test probe, Green
• 1x A 1297 Crocodile clip, Brown
• 1x A 1310 Crocodile clip, Blue
• 1x A 1309 Crocodile clip, Green
• 1x A 1296 Test cable, BRN/GRN/BLU, 1.5m, 0.75mm2
• 1x A 1053 Test cable, 1.5m, 0.75mm2

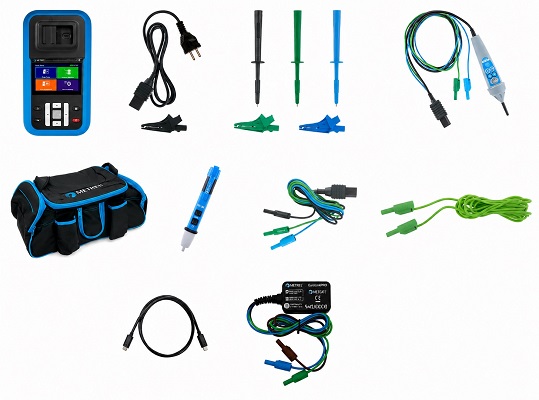

The MI-3136 Advanced Kit also includes:
• A1551 Large Padded Carry Bag
• A1401 Remote Probe for XC/XD
• A1195 Resistor Box
• A1012 Trailing Lead - 4M Green
• MD-106 Non-Contact Voltage Detector
Product Features
- PASS/FAIL limits to AS/NZS 3017
- Replaces 5 instruments with 12 tests in one instrument
- Verification, fault-finding and diagnosis of live and dead installations, and compliance testing to AS/NZS 3017
- Auto-sequences to verify sockets and installations in seconds by combining up to 6 single tests into a single push button sequence
- High volume RCD testing procedure
- 5 instruments-in-one with reporting: Multimeter, Insulation Tester, RCD Tester, Loop Impedance & Phase Sequence Tester
- Save test results and download PDF test reports for customers and record keeping
- Built‑in help screens for referencing on site
- Built‑in fuse tables for automatic evaluation of the line / loop impedance result
- Monitoring of all 3 voltages in real‑time
- Automatic polarity reversal on continuity test
- Measurement filtering according to the selected area group
- Wi-Fi and Bluetooth® connectivity for fast communication with Metrel Cloud for measurement planning, data management and reporting
- Metrel Cloud Storage compatible
- Metrel Cloud App compatible
- PC SW Metrel ES Manager: Enables creation of test structures, professional test reports and data transfer for archiving
- Optional A-1532XA adaptor for EVSE charging station testing
Specs
Frequency 0 – 499.9Hz
Continuity 200mA for earth resistance and equipotential bonding
Insulation Resistance 50V to 1000V, 0.01Mohn to 200Mohm
RCD Testing trip time and trip current, 10mA, 30mA … 1000mA, and with 0o or 180o starting polarity
Fault Loop Impedance
Phase Rotation
Socket Test earth continuity, polarity and correct connections tests with a single push button and with Pass/Fail indication without trailing leads
Overvoltage Category 600V CAT III and 300V CAT IV
Includes mains measuring cable, 3 x test leads, 3 x test probes, 3 x crocodile clips, test cable, USB charger, rechargeable batteries, ES Manager BASIC license, large padded carry bag, remote probe for XC/XD, resistor box, trailing lead – 4M green & non-contact voltage detector
