Proven DMLS Quality for Industrial Production

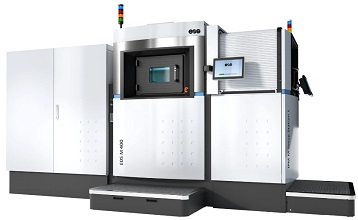

With a 400 x 400 x 400 mm build volume, and your choice of one 1000 W or four 400 W lasers, the EOS M 400 Series combines the highest productivity with reliable and repeatable DMLS part quality. Powered by an extensive portfolio of materials and processes, the EOS M 400 Series enables the development and production of a wide variety of applications.
The EOS M 400 Series is easily integrated in your production - both from a part and data flow perspective. In addition, with the EOS Shared Modules you can easily expand your machine park as demand grows - from one to many systems in one or many facilities worldwide.
Product Features
- Up to 4x more productivity
- Four precise 400-watt fi ber lasers
- Build volume of 400 x 400 x 400 mm
Metal materials and processes compatible with the EOS M 400: Aluminium, Cobalt Chrome, Copper, Nickel Alloys, Stainless Steel, Titanium and Tool Steel.
Specs
| Build Volume | 400 x 400 x 400 mm (15.7 x 15.7 x 15.7 in) |
| Laser Type | Yb-fiber laser; 1 x 1000 W |
| Presicion Optics | 1 F-theta-lens(es); 1 High-speed scanner(s) |
| Scan Speed | up to 7.0 m/s (23.0 ft/s) |
| Focus Diameter | approx. 90 µm (0.00354 in) |
| Power Supply | 1 x 50 A |
| Power Consumption | max. 50.2 kW / typical 16.2 kW |
| Compressed Air Supply | 7 Bar; 20 m³/h (102 psi; 706 ft³/h) |
| Machine Dimensions | 4181 x 1613 x 2355 mm (164.6 x 63.5 x 92.7 in) |
| Recommended Installation Space | min. 6500 x 6000 x 3300 mm (255.9 x 236.2 x 129.9 in) |
| Weight | approx. 4635 kg (10218 lbs) |
| Software | EOS BUILD , EOS SYSTEM SUITE |
